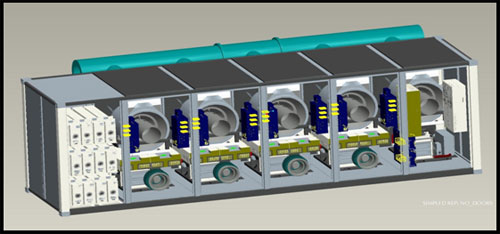

C1000 Turbine
Features
- Load following 0-30 kW; 0-60 kW
- 360-528 VAC, 50/60 Hz (Stand-alone 360-480 VAC, 10-60 Hz) 3-phase, 3- or 4-wire wye (4-wire for stand-alone) 46 or 100 (C30 or C60) ARMS/phase max continuous
- Grid-connect and/or stand-alone self-start with automatic mode switching
- Maintenance-free air bearings
- No liquid lubricants
- No liquid coolants
- Fuels - C60 natural gas; C30 natural gas, propane, diesel, kerosene, sour oilfield flare gas (up to 700,000 ppm H2S), biogas (as low as 350 Btu/scf)
- Maintenance-free internal gas compressor w/foil bearings (C30 Only)
- Digital power controller
- Built-in display and user interface
- Built-in protective relays
- Built-in arraying of 2-20 units with no external hardware (or unlimited via grid connection communication)
- Open communications protocol for easy interface with building control systems
- UL-Listed (UL2200, UL1741, UL795 and UL1995), IEEE 519, NFPA, CE, CSA, NEMA 3R, CEC Rule 21, NYPSC DG, CARB 2003 DG, other certifications
Benefits
- Ultra-low emissions (CARB 2003 DG certified)
- Minimal annual maintenance
- Direct2Grid interconnection UL1741, CA Rule 21, NYPSC DG
- No fluid storage, leakage, changes, disposal
- Reduced compression maintenance
- As low as 0.2 psig inlet pressure
- Uncontaminated exhaust heat for sensitive direct-drying applications
- Phase-to-phase balance (0-100%) on stand-alone units
- Small footprint, lightweight
- Vibration-free, quiet operation
- Easy indoor/outdoor/rooftop sitting
- Zero hardware arraying (up to 1.2MW)
- Optional remote monitoring/dispatch
- Optional heat recovery module
- Optional 2-to-100-unit PowerServer networking
- Optional external gas compressor that serves multiple units
All Capstone Turbines Operate
- Continuously or On-Demand
- Stand alone or Grid Connect
- Individually or Multi-pack
- Run on a variety of fuels
- Low or High Pressure Natural Gas
- Biogas (landfill, wastewater treatment centers, anaerobic)
- Flare gas
- Diesel
- Propane
- Kerosene
